What are Bubble Mailers? Protection, Sizing, and Branding

There is a distinct, lingering anxiety every e-commerce business owner knows all too well: that quiet moment after handing off a batch of delicate orders to the courier, wondering if your carefully crafted products will survive the brutal gauntlet of conveyor belts, sorting hubs, and rough delivery vans intact.

For years, the default safety net has been the classic corrugated box. But as regional and international couriers continuously tighten dimensional weight (DIM weight) pricing models, shipping empty air inside over-engineered cartons feels like burning cash on every order. On the flip side, slipping items into unpadded paper envelopes leaves your brand exposed to crushed corners, scuffed finishes, and costly return requests.

That is where custom bubble mailers change the game. By combining high-density air-cushioned shock absorption with an ultra-lightweight, flexible outer footprint, bubble mailers deliver the ultimate hybrid shipping solution—protecting your products against severe transit impacts while keeping your postage bills grounded.

What Makes a Bubble Mailer?

At first glance, a bubble mailer seems like a simple shipping envelope, but under the hood, it is a carefully engineered, multi-layered protective structure designed to replace heavy outer boxes without sacrificing safety. Understanding its three core anatomical components reveals why it performs so well on high-speed fulfillment lines and inside rugged courier trucks:

1. The Outer Protective Shell

The exterior layer serves as your first line of defense against environmental hazards during transit. Manufactured from tough substrates like co-extruded polyethylene (poly), heavy-duty kraft paper, or reflective metallic films, this outer skin provides high tear resistance, puncture protection, and surface waterproofing to keep moisture and dirt away from your goods. Beyond physical shield duties, the outer shell acts as a prime, smooth canvas for full-bleed custom brand printing, vibrant color flooding, and high-impact typography.

2. The Air-Cushioned Inner Lining

Bonded directly to the inner surface of the exterior shell is a high-density matrix of air-filled polyethylene bubbles. Engineered specifically for impact absorption, this cellular air pocket barrier creates a suspension zone around your product. It absorbs drop shocks, dampens road vibration, and prevents sharp edges from punching through the envelope. The smooth inner surface also allows products to slide in quickly during packing without snagging.

3. High-Tack Peel-and-Seal Adhesive Strips

Fulfillment speed and package security depend heavily on how an envelope closes. Modern custom bubble mailers feature a hot-melt, high-tack pressure-sensitive adhesive strip protected by a quick-release paper liner. Once peeled and pressed shut, the adhesive forms a permanent, tamper-evident bond with the outer shell. Attempting to reopen the envelope destroys the material around the flap, immediately alerting customers to unauthorized opening while eliminating the need for extra packing tape on your packing table.

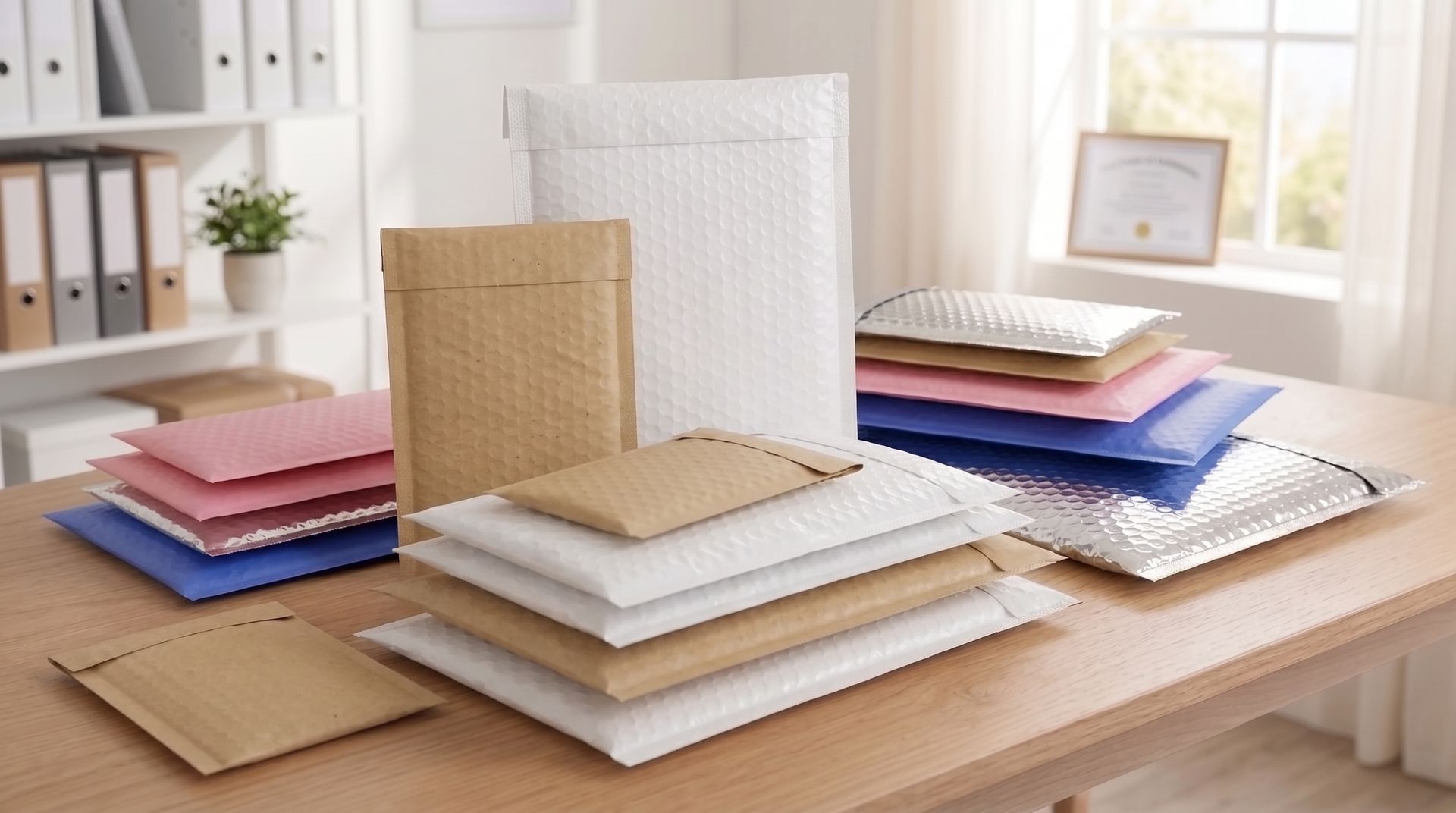

Types of Bubble Mailers (Material & Outer Shell Comparison)

• Poly Bubble Mailers: Water-resistant, tear-proof polyethylene shells ideal for weather protection, vibrant full-color printing, and high-volume D2C shipping.

• Kraft Paper Bubble Mailers: Classic golden/natural or bleached white paper outer shells offering a clean, traditional aesthetic with solid structural rigidity.

• Metallic & Holographic Mailers: High-shine reflective shells designed for beauty brands, luxury cosmetics, and limited-edition retail drops that demand high visual impact.

• Eco-Friendly & Recyclable Mailers: Biodegradable or 100% post-consumer recycled (PCR) bubble mailers designed for sustainable brands committed to zero plastic waste.

Standard Sizes & Measuring for the Perfect Fit

Selecting the right size envelope ensures your products stay safe without paying extra for unused space. Because the internal bubble lining eats into the outer footprint, always measure based on usable interior space rather than exterior dimensions.

Standard Industry Size Reference Chart

Below are the most common standard industry size designations used across e-commerce logistics, along with their typical interior and exterior dimensions:

How to Calculate the Perfect Bubble Mailer Size for 3D Items

When shipping items that aren't completely flat, the 3D depth of your product consumes both width and length as the envelope stretches outward. Use these simple formulas to calculate your required interior dimensions before purchasing:

Required Interior Width = Product Width + Product Depth + 1 inches (padding buffer margin)

Required Interior Length = Product Length + Product Depth + 2 inches (flap fold over clearance)

• Example: If you are shipping a framed print measuring 5 inches wide x 8 inches long x 1.5 inches thick

  • Width needed: 6 + 1.5 + 1 = 8.5 inches

  • Length needed: 8 + 1.5 + 2 = 11.5 inches

  • Result: Select a #2 or #4 mailer to give your product a comfortable fit.

Avoiding the Over-Stuffing Trap

It is tempting to squeeze a product into a slightly smaller mailer to save pennies on postage, but over-stuffing puts extreme pressure on side seals and heat-welded edges.

During transit, sorting machinery, drop impacts, and stacking weights exert outward tension on crammed mailers. If the envelope is stretched taut, these stress forces concentrate directly on the side seams, causing them to burst open along conveyor lines. Always allow a minimum 1-inch buffer across both dimensions so the air-cushioned bubble lining can properly conform to your item and absorb impact shocks safely.

Custom Branding, Printing, & Finishing Options

Shipping envelopes do not have to look like generic, industrial utility supplies. With modern flexographic and digital printing capabilities, your padded mailers can function as high-impact branding assets that create an unforgettable unboxing moment the second they arrive on a customer's doorstep.

Full-Bleed Surface Graphics

Take full advantage of the outer shell by printing edge-to-edge graphics, vibrant custom Pantone colors, brand logos, and custom promotional messaging across the entire exterior. Full-bleed surface graphics transform a standard shipping package into a mobile billboard for your brand, ensuring high visual recognition while the package moves through courier networks and onto residential porches.

Matte vs. Gloss Surface Coatings

The tactile experience of your package sets the tone for your brand identity before the envelope is even opened:

• Matte Finish: Offers a soft, muted, low-glare texture that radiates modern elegance and understated luxury. It is particularly popular with boutique apparel, organic skincare, and minimalist lifestyle brands.

• Gloss Finish: Delivers a vibrant, high-shine, reflective exterior that makes bold colors and graphic artwork pop with intense saturation. Gloss coatings also provide an added slick barrier that sheds moisture and dirt easily.

Security & Tamper-Evident Features

Protecting high-value items requires smart design choices that prevent transit theft and unauthorized tampering:

• Opaque Dark Interior Linings: Black or grey co-extruded inner layers ensure complete opacity, preventing outsiders from identifying expensive jewelry, electronics, or cosmetics using backlighting or transparent inspection.

• Tamper-Evident Heat Seals: Advanced hot-melt adhesive strips create a permanent, destructive bond upon closure. Any attempt to tear or peel the flap leaves visible, irreparable tearing on the outer shell, giving both you and your customer clear evidence of tampering.

Key Takeaways

• Custom bubble mailers drastically reduce dimensional weight (DIM weight) shipping fees compared to bulky corrugated boxes while providing built-in shock absorption.

• Use Poly for tear-proof waterproofing and D2C volume, Kraft for a traditional or eco-conscious look, and Metallic for high-shine beauty or luxury drops.

• Always measure usable interior space rather than exterior dimensions. Add your product's depth to both length and width to ensure a proper fit without seam stress.

• Maintain at least a 1-inch buffer margin to prevent side seals from bursting under transit pressure and sorting conveyor impacts.

• Utilize full-bleed exterior printing, choose between elegant matte or vibrant gloss coatings, and use opaque security linings to protect high-value goods.
